Tower 47

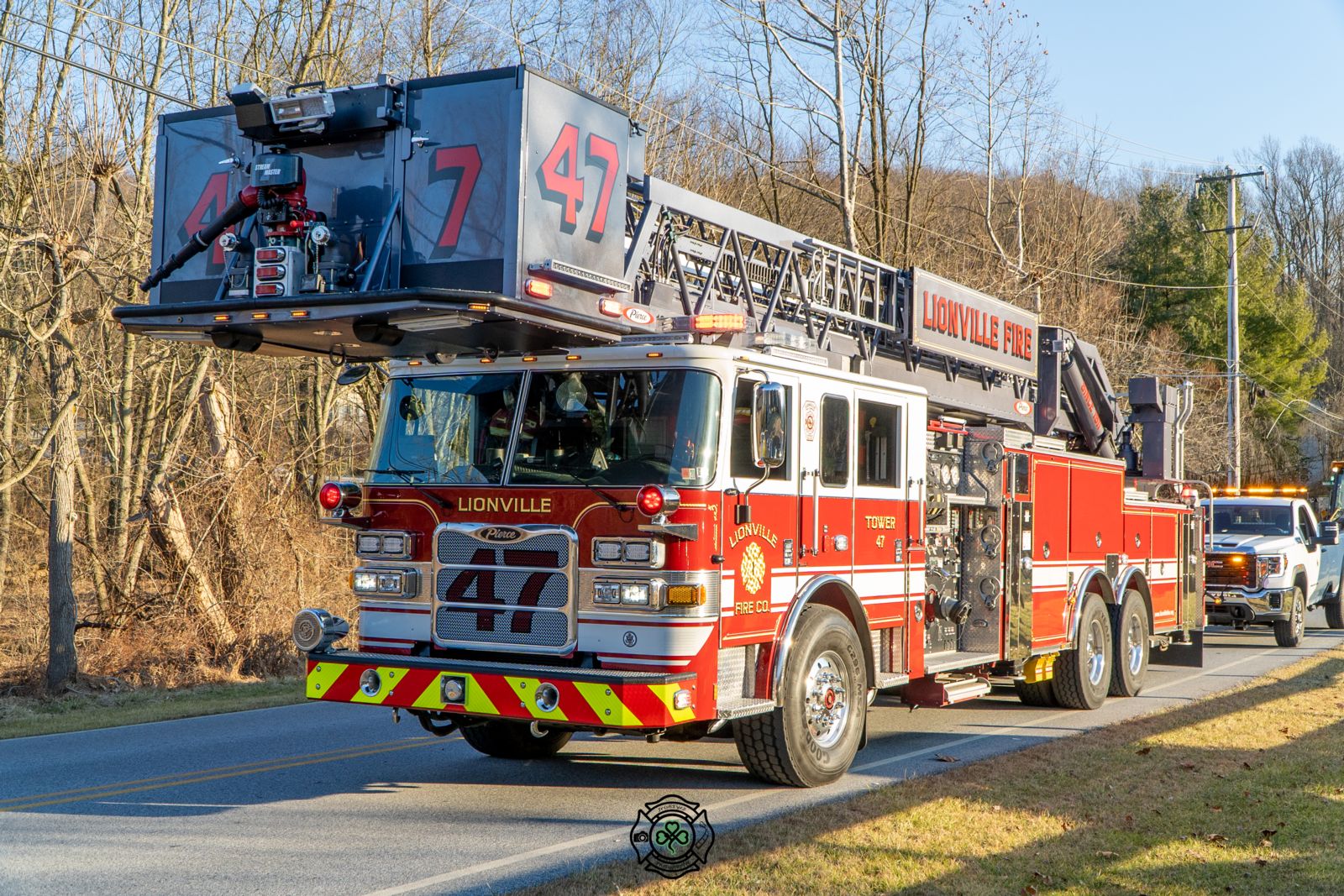

2020 Pierce Arrow XT 100' Heavy Duty Tower

Tower 47 is a 2020 Pierce Arrow XT equipped with a 600 horsepower 14.9L Cummins X15 inline-6 diesel engine, and an Allison 4500 EVS automatic transmission. Tower 47 is second out on all first due structure fires and special assignment mutual aid. Tower 47 is also second out on Rapid Intervention Team (RIT) responses and technical rescue responses. Seating for 6 with each having a Scott 45 minute SCBA.

• 100-foot Steel Heavy-Duty Aerial with 1000lb dry/500lb wet tip capacity
• 18'-spread Dual H-style Outriggers
• 6kW Harrison hydraulic generator
• Hale QMAX-200 2,000 gallon per minute single-stage pump
  • 300 gallon water tank
• Hose Compliment:
  • 200’ 1 ¾” driver's side crosslay
  • 200’ 1 ¾” officer's side crosslay
  • 200" 2 ½" driver's side crosslay
  • 800’ 5” supply
• Ladder Compliment: (157 feet total)
  • 1 – 35’ Extension Ladder
  • 1 – 28' Extension Ladder
  • 1 – 24' Extension Ladder
  • 2 – 16' Roof Ladders
  • 1 – 14’ Roof Ladder
  • 1 – 14' Roof Ladder located on the main aerial
  • 1 – 10’ Collapsible Attic Ladder
• Technical Rescue:
  • 2 – 300' 11mm Bags of Life Safety Rope
  • 2 – Rope Rescue Rigging Bags
  • 2 – Rope Rescue PPE Kits
  • 2 – Water Rescue PPE Kits
  • 1 – Arizona Vortex Portable AHD Multipod
  • 1 – Wire Mesh Stokes Basket with Rigging and Backboard
• Fans
  • 1 – Electric Smoke Ejector
  • 2 – Electric Battery-Powered Positive Pressure Ventilation Fans
• Saws
  • 2 – Stihl MS 462 R C-M Rescue Chain Saws
  • 1 – Stihl TS 420 Cutquik 14" Cut-Off Saw
  • 1 – Stihl AP 36V 9" Cutquick Battery Cut-Off Saw
• 1 – Scott 60 minute SCBA RIT Pack
• 1 – Chimney Fire Kit
